Description
The innovative SMARTIA S77 is a thermal insulation system for advanced opening and tilting aluminum frames, combining modern aesthetics and top-notch robustness. It offers enhanced security, excellent sound insulation, certified performance and is suitable for constructions implemented in passive buildings.
Advantages
- Significant energy savings thanks to the top performance of the window frame (passive building level).
- High level of security.
- Excellent soundproofing.
- Ease of use and top functionality.
- Modern aesthetics.

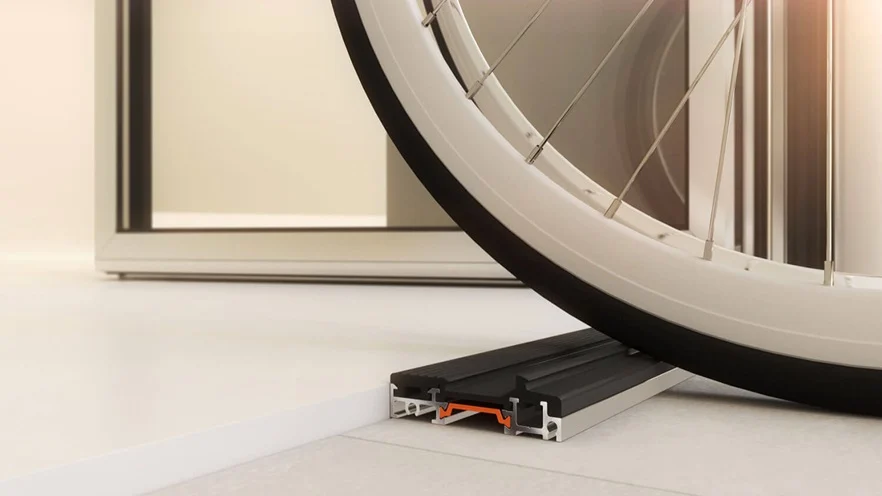

- Easy access with specifications for people with disabilities and children (typology with low threshold).
- A multitude of typologies and construction options.
- Excellent quality with certified performance.
- Increased stability in extreme natural phenomena.
- Suitable for construction in passive buildings in the warm/temperate climate zone.
Certificates
General Features
SYSTEM TYPE
Opening – reclining
THERMAL INSULATION
Yes
OUTWARD APPEARANCE
Straight
Technical Specifications
HOUSE DEPTH
77 mm
MINIMUM APPEARANCE CONSTRUCTION HEIGHT
93 mm
MINIMUM APPEARING WIDTH OF CENTER COLUMN (BINI)
122mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 24 to 72 mm
MECHANISM
Euro-groove, Euro-nut
TYPE OF WATERPROOFING
Three-layer perimeter with foam & EPDM tires
MINIMUM RESIDENCE HEIGHT
13 mm
TYPE OF THERMAL INSULATION
40 mm wide polyamides, ALUMIL Energy bar, Foam insulation material
Performance
WATERPROOFNESS
CLASS E1350
AIR PERMEABILITY
CLASS 4
WIND PRESSURE RESISTANCE
C5/B5
SOUND REDUCTION
42 dB
BURST RESISTANCE
RC2/RC3
Features
SHEET WEIGHT
up to 180 Kg
THERMAL INSULATION UF
from 0.85 to 2.42 W/m²K
TYPES OF CONSTRUCTIONS
All types of tilt-and-turn frames, rotating
