Description

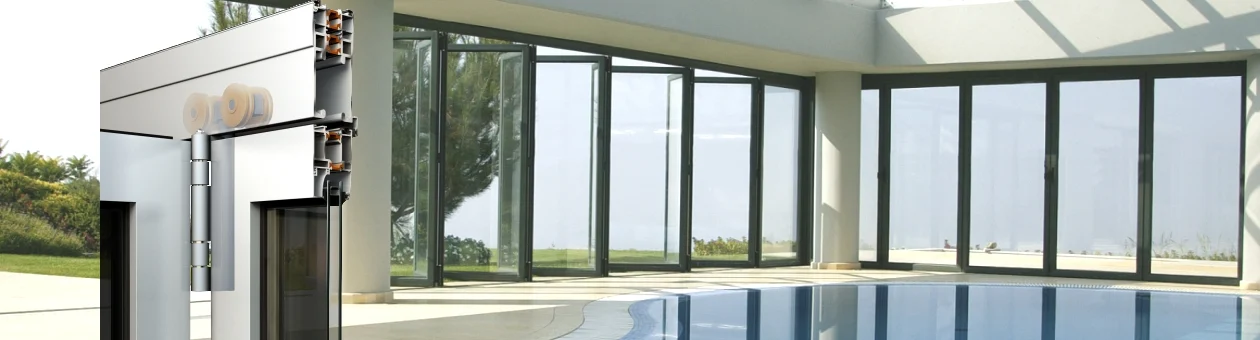

SMARTIA M19800 is a suspended bellows thermal insulation system, suitable for both regular and large constructions. It offers robust and elegant solutions for medium and high-end projects, such as modern homes, office buildings, conference centers, hotels, restaurants and more.
Advantages
- Possibility of constructions to cover large openings
- Robust construction with long-lasting flawless operation
- High thermal insulation and energy saving
- High performance in terms of wind resistance, wind permeability and waterproofing
- Easy construction and installation
Certificates
General Features
THERMAL INSULATION
Yes
AESTHETICS
relatively barely visible aluminum
ROLLING TYPE
hanging movement above
PANEL TYPE
aluminum frame with slats
APPLICATIONS
residences, shopping centers, conference centers, restaurants, hotels
Technical Specifications
SHEET WIDTH
50mm
GLAZING
24-32mm
POLYAMIDES
double 18mm
CENTRAL RUBBER
EPDM couple
LOCKING
2-point locking of intermediate leaves
VISIBLE ALUMINUM
143mm (sheet-to-sheet)
MAXIMUM WEIGHT
80Kg / sheet
MAXIMUM HEIGHT
2.5m
MAXIMUM PANEL WIDTH
1.0m
Performance
THERMAL INSULATION UF
1.9 W/m²K
WATERPROOFNESS
4A, IFT
AIR PERMEABILITY
cl. 3, IFT
WIND PRESSURE RESISTANCE
C1/B1, IFT
