Description

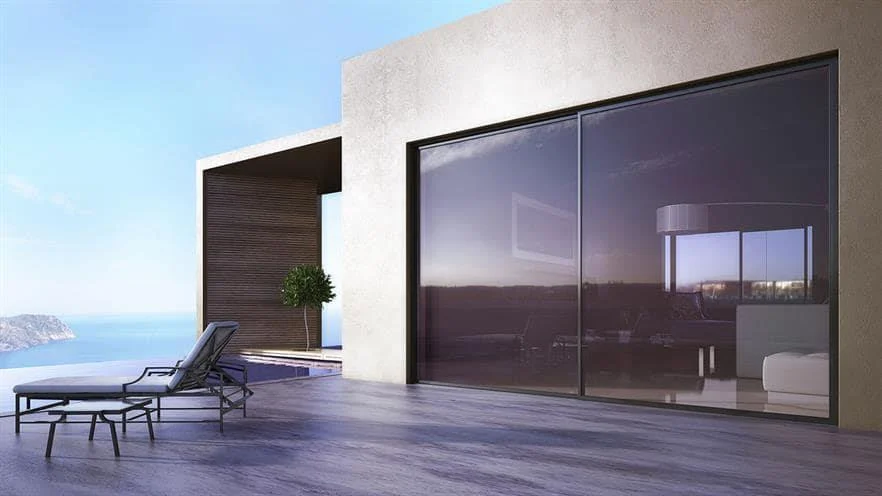

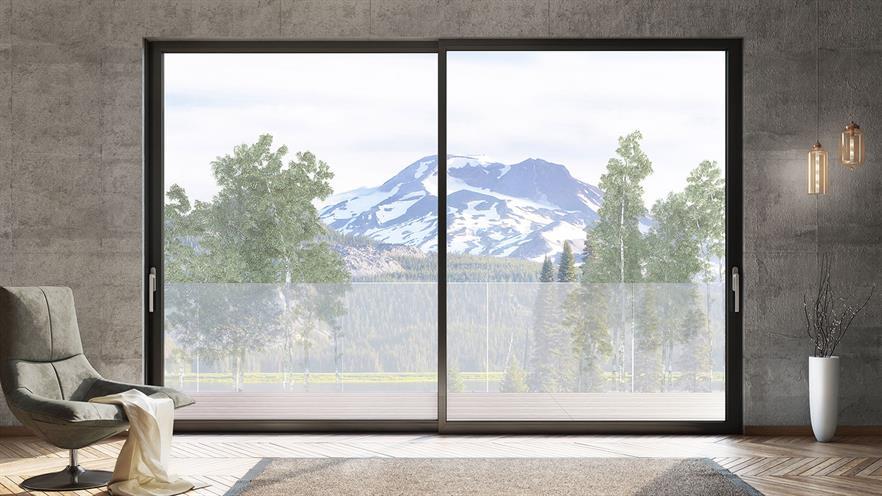

SMARTIA S560 is a robust aluminum thermal insulation system for large-sized sliding and retractable frames, with a modern design and high energy performance.
Advantages

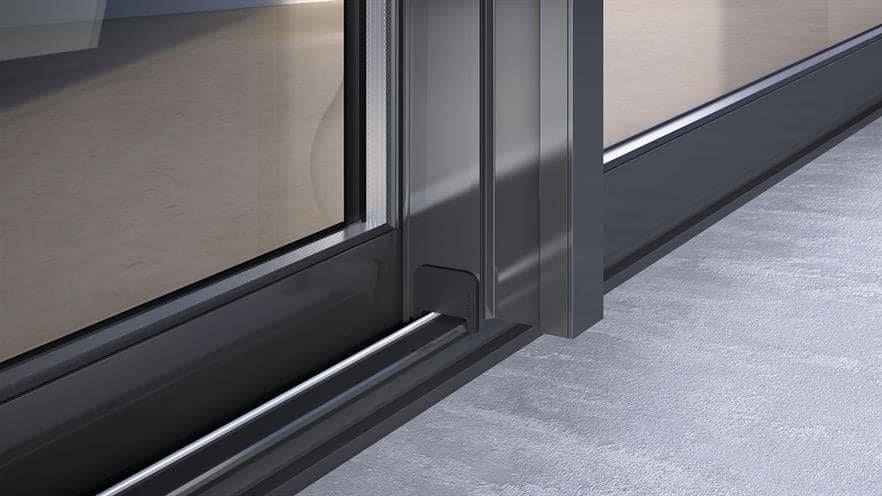

- Maximizing natural light, with just 4.9 cm of exposed aluminum at the overlap point.
- Easy access using a low guide, which is ideal for replacements (SMARTIA S560 LT version).
- High energy savings, thanks to the excellent energy performance of the window frame.

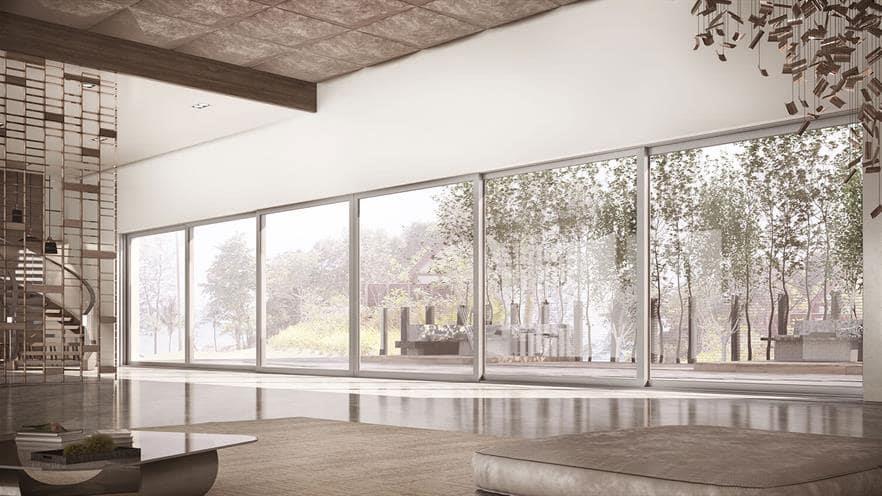

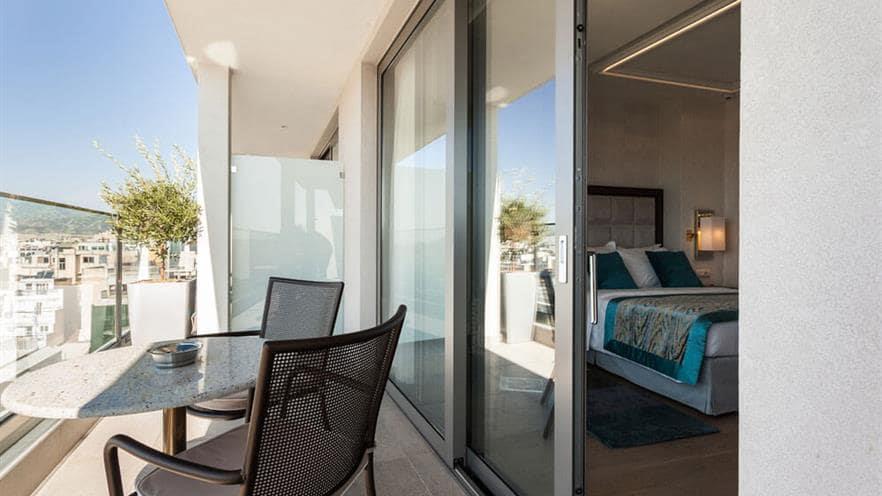

- Ease of use and top functionality, even on large balcony doors.
- Flexibility through a multitude of typologies (sliding, sliding, flush and corner frames), and locking mechanisms.
- High quality with certified performance.
Certificates
General Features
SYSTEM TYPE
Retractable, Sliding
THERMAL INSULATION
Yes
OUTWARD APPEARANCE
Straight
Technical Specifications
SHEET DEPTH
56 mm
MINIMUM APPEARANCE CONSTRUCTION HEIGHT
108.5mm
MINIMUM APPARENT WIDTH OF CENTRAL COLUMN (SEQUENCE)
49mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 22 to 45 mm
MECHANISM
Slide / Lift & Slide mechanism
TYPE OF WATERPROOFING
EPDM tires & brush with triple membrane
MINIMUM RESIDENCE HEIGHT
31 mm
TYPE OF THERMAL INSULATION
Polyamides, Foamed thermal insulation material, Thermoplastic
Performance
WATERPROOFNESS
CLASS E1200
AIR PERMEABILITY
CLASS 4
WIND PRESSURE RESISTANCE
C5/B5
SOUND REDUCTION
42 dB
BURST RESISTANCE
RC2
Features
SHEET WEIGHT
up to 300 Kg
THERMAL INSULATION UF
from 2.3 W/m²K
TYPES OF CONSTRUCTIONS

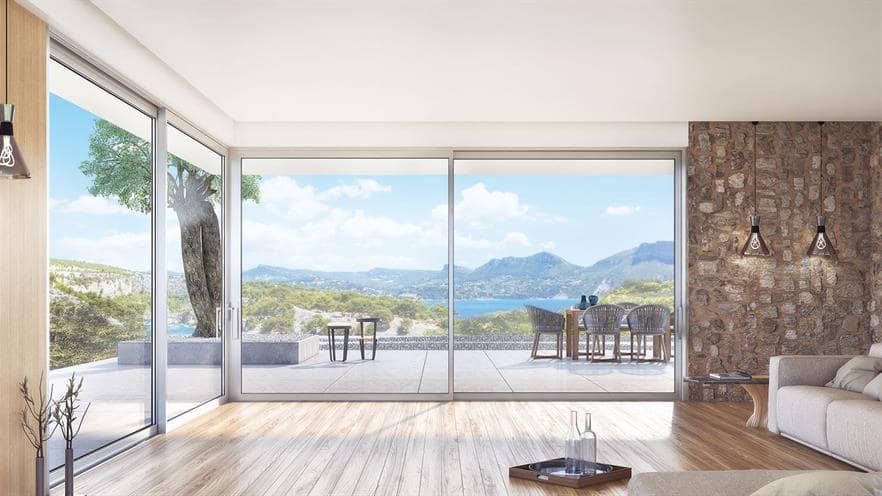

Stacked, Faceted, Recessed, Corner, Combinations with screen and shutter/roller, Multi-leaf
