Description

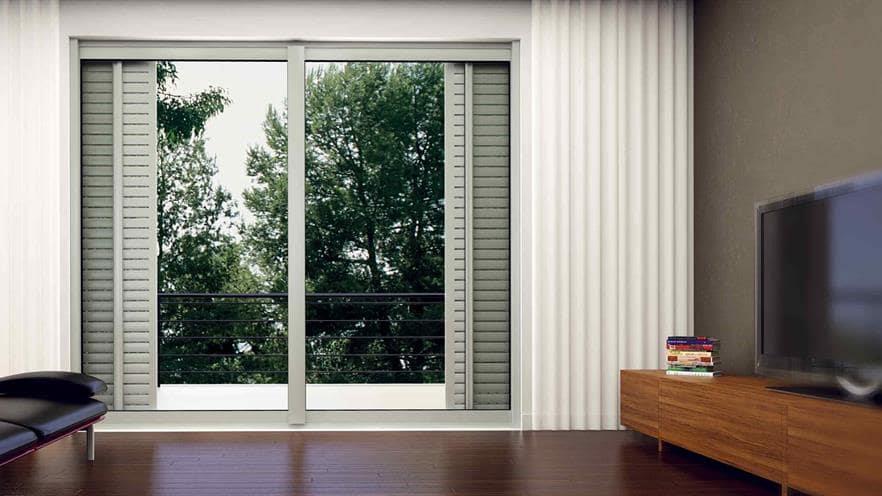

Thanks to its ease of construction, SMARTIA S350 is the most suitable sliding frame for renovations and energy upgrades. Flexible, modern and minimal, maximizes natural lighting and offers unobstructed views.
Advantages
- Maximizing natural light and visibility, with just 2.5 cm of visible aluminum at the overlap point.
- Easy access using a low guide, ideal for replacements (SMARTIA S350 LT version).
- Energy saving, thanks to its high energy performance.
- Flexibility through a variety of typologies and locking mechanisms.
- High quality with certified performance.
Certificates
General Features
SYSTEM TYPE
Sliding
THERMAL INSULATION
Yes
OUTWARD APPEARANCE
Straight
Technical Specifications
SHEET DEPTH
35mm
MINIMUM APPEARANCE CONSTRUCTION HEIGHT
101 mm
MINIMUM APPEARING WIDTH OF CENTER COLUMN (BINI)
102 mm
MINIMUM APPARENT WIDTH OF CENTRAL COLUMN (SEQUENCE)
25 mm
GLAZING TYPE
Double
MAXIMUM GLAZING THICKNESS
up to 28 mm
MECHANISM
Sliding mechanism
TYPE OF WATERPROOFING
Perimeter brushes with triple membrane
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic
Performance
WATERPROOFNESS
CLASS 7A
AIR PERMEABILITY
CLASS 4
WIND PRESSURE RESISTANCE
C2/B3
SOUND REDUCTION
38 dB
Features
THERMAL INSULATION UF
from 2.4 to 4.7 W/m²K
SHEET WEIGHT
up to 180 Kg
TYPES OF CONSTRUCTIONS
Stacked, Faced, Recessed, Combinations with fixed, Combinations with screen and shutter/roller
