Description

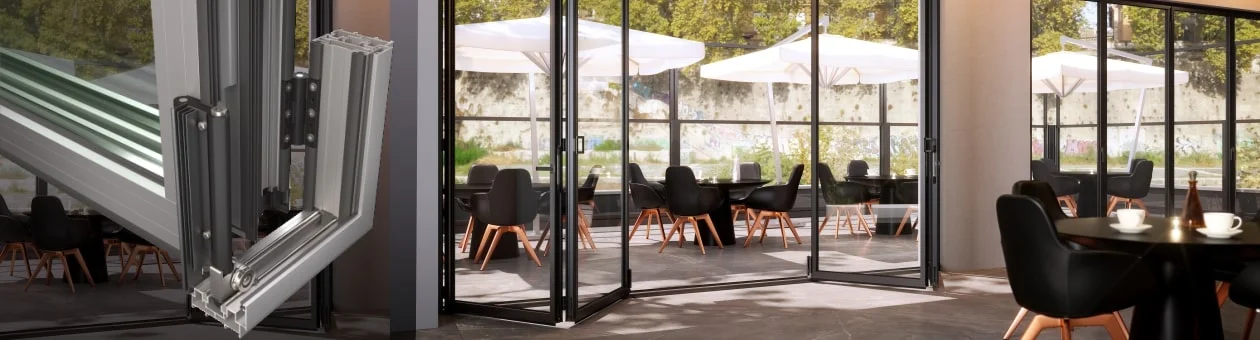

SMARTIA MF6500 is a non-thermally insulated folding door system (bellows) with a minimal design and minimal visible aluminum (88 mm), offering elegance and a modern look. Its excellent performance in air permeability and water tightness make it an ideal choice for robust, large-scale constructions, where thermal insulation is not a main priority.
Advantages
- It maximizes natural lighting in the space, providing an unobstructed view, thanks to its minimal design and minimal visible aluminum (88 mm).
- It achieves top performance in air permeability, water tightness and resistance to wind pressure.
- It provides high levels of burglary protection, with 5 locking points on the door, 4 points on the leaves and a special anti-lift mechanism on the rollers.
- It enables robust constructions of large dimensions (up to 1.3 m wide or up to 3 m high).
- It offers a wide variety of solutions with odd and even number of leaves, double or triple glazing (24-44 mm) and regular or low sill.
- It ensures smooth and unobstructed operation (down rolling) over a long period of time and without sagging, thanks to the high-quality, heavy-duty roller hinges.
- Ideal for a wide range of applications, from residential to commercial spaces.
Certificates
General Features
THERMAL INSULATION
No
ROLLING TYPE
scroll down
APPLICATIONS
residential with a sash width of 1.3m, commercial applications with a sash height of up to 3.0m
Technical Specifications
SHEET WIDTH
65 mm
GLAZING
24-44mm
CENTRAL RUBBER
EPDM
LOCKING
5-point (door) & 4-point (intermediate leaves)
VISIBLE ALUMINUM
88 mm sheet/sheet
MAXIMUM WEIGHT
140 Kg/sheet
MAXIMUM HEIGHT
3.0 m
MAXIMUM PANEL WIDTH
1.3m
