Description

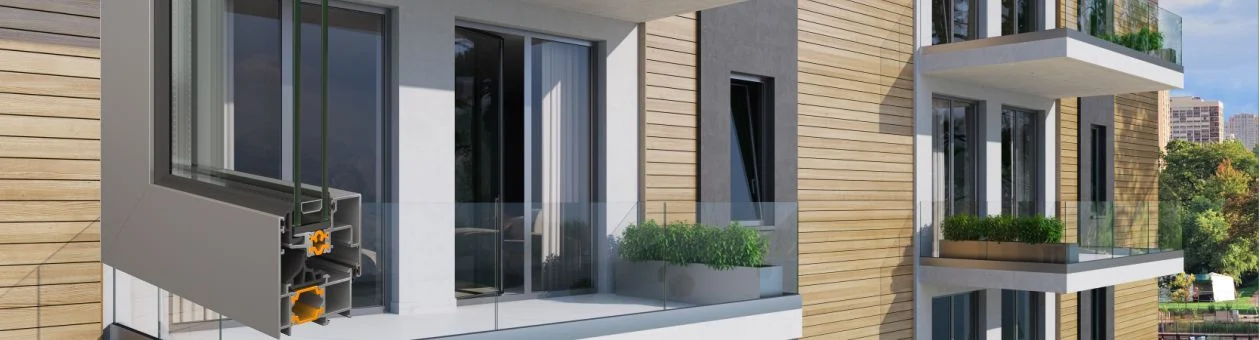

SMARTIA M9660 PHOS is a thermal insulation system for opening and tilting aluminum frames with hidden sash. Thanks to the minimal Its design minimizes visible aluminum, allowing natural light to enter the space. At the same time, the system offers high thermal insulation and waterproofing performance, making it an ideal solution for new projects and renovations.
Advantages
- Excellent value for money.
- Enhancement of natural lighting thanks to minimal design of.
- Ease of use and top functionality.
- Elegant and modern appearance thanks to the straight lines of the profiles.
- Suitable for all climate zones thanks to the high levels of thermal insulation it offers.
- Ideal for new projects and renovations of residential and commercial spaces.
- High certified performance.
Certificates
General Features
SYSTEM TYPE
Opening – reclining
THERMAL INSULATION
Yes
OUTWARD APPEARANCE
Straight
Technical Specifications
HOUSE DEPTH
56 mm
MINIMUM APPEARANCE CONSTRUCTION HEIGHT
70.5mm
MINIMUM APPEARING WIDTH OF CENTER COLUMN (BINI)
101 mm
GLAZING TYPE
Double
MAXIMUM GLAZING THICKNESS
26mm
MECHANISM
Euro nut
TYPE OF WATERPROOFING
Perimeter three-layer EPDM tires
TYPE OF THERMAL INSULATION
Perimeter three-layer EPDM tires
Performance
WATERPROOFNESS
7A (300Pa)
AIR PERMEABILITY
CLASS 4
WIND PRESSURE RESISTANCE
C3/B3
Features
THERMAL INSULATION UF
From 2.5 to 3.6 W/m²K
SHEET WEIGHT
up to 130 Kg
TYPES OF CONSTRUCTIONS
All types of tilt-and-turn windows
